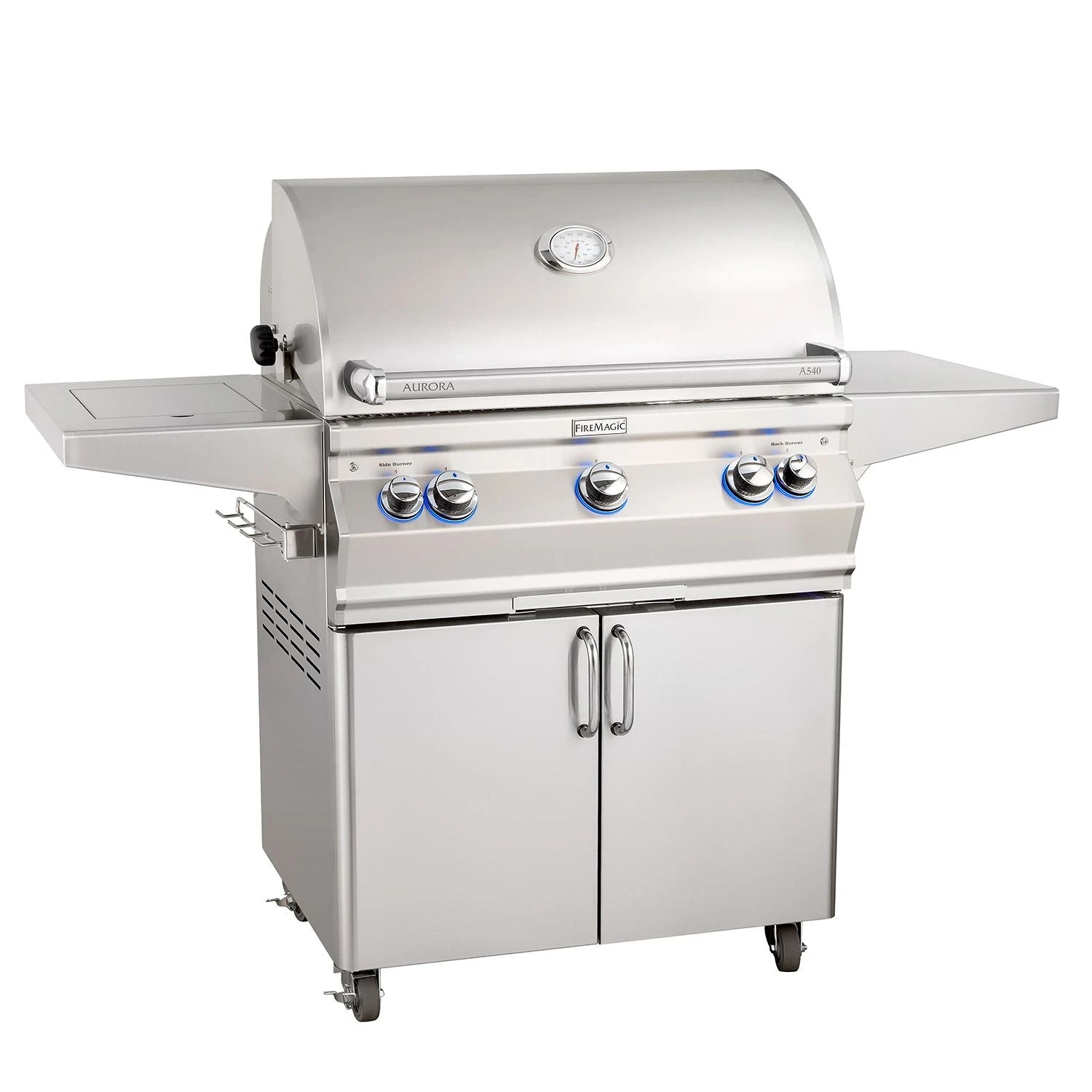

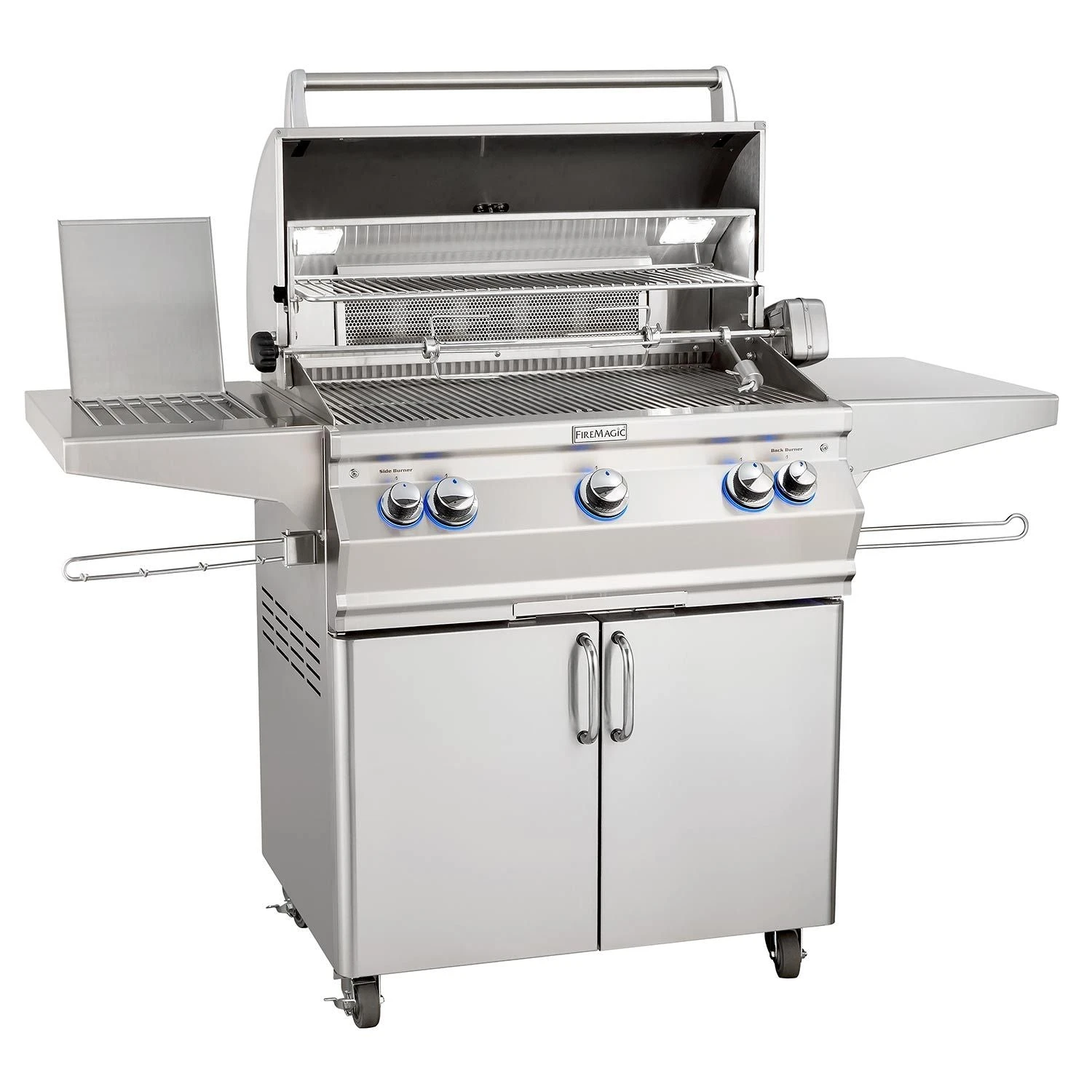

Fire Magic A540s Aurora 30-Inch Gas Grill On Cart

Superior design and engineering power the Fire Magic Aurora Series’ unparalleled performance. With many of the same features as its sister Echelon Series, the Aurora Series grill delivers cooking versatility, durability and longevity in a beautifully crafted machine.

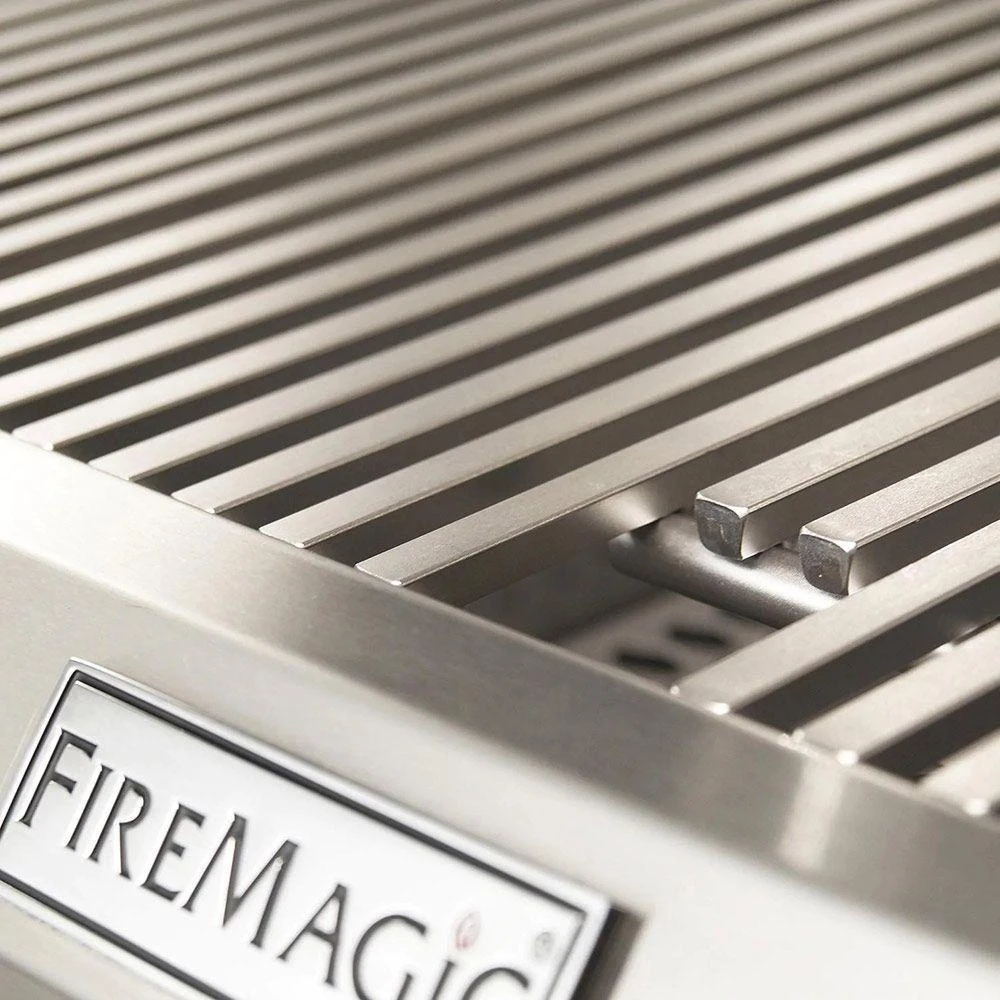

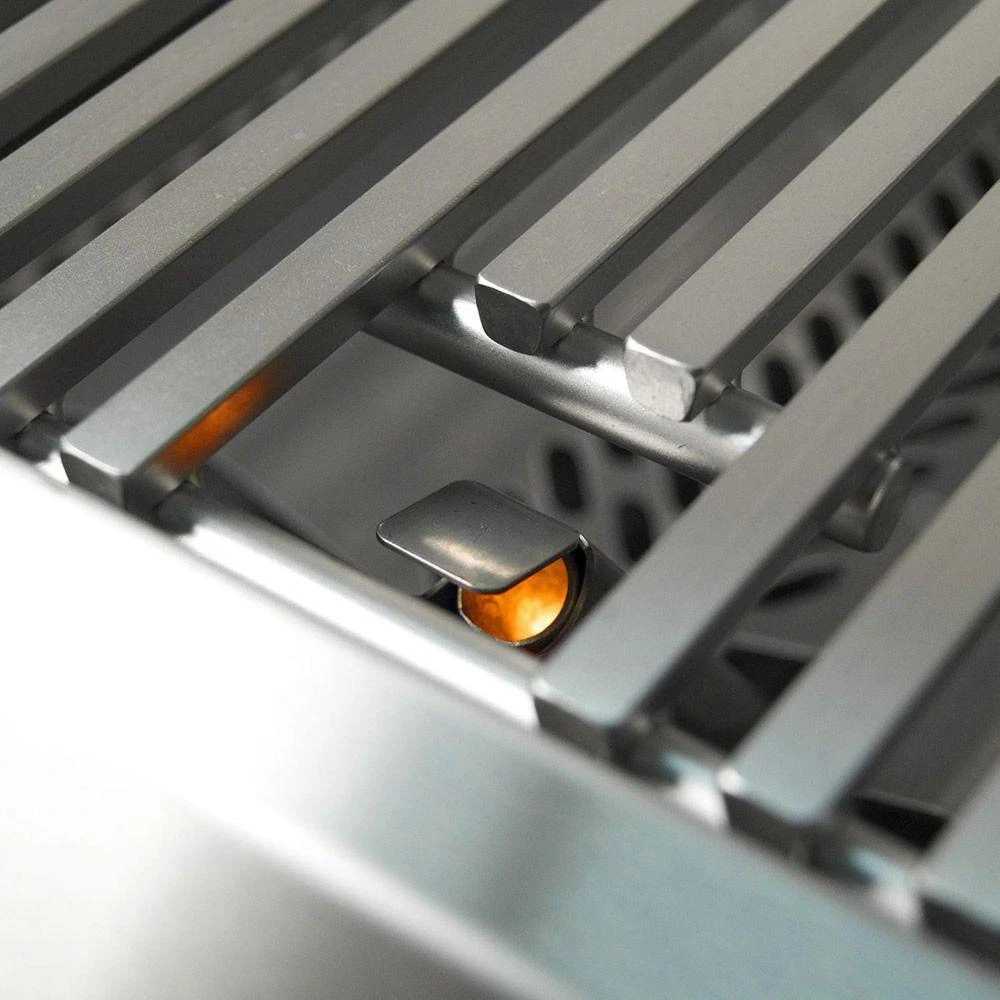

Diamond Sear Cooking Grids are superior! Diamond Sear Cooking Grids have a patented design with bars that have a smooth flat top; each individual bar measures over .35” wide at the top covering over one half of the total cooking surface. Each bar is shaped to optimally transfer the heat from the burners to the cooking surface so food cooks faster and more evenly!

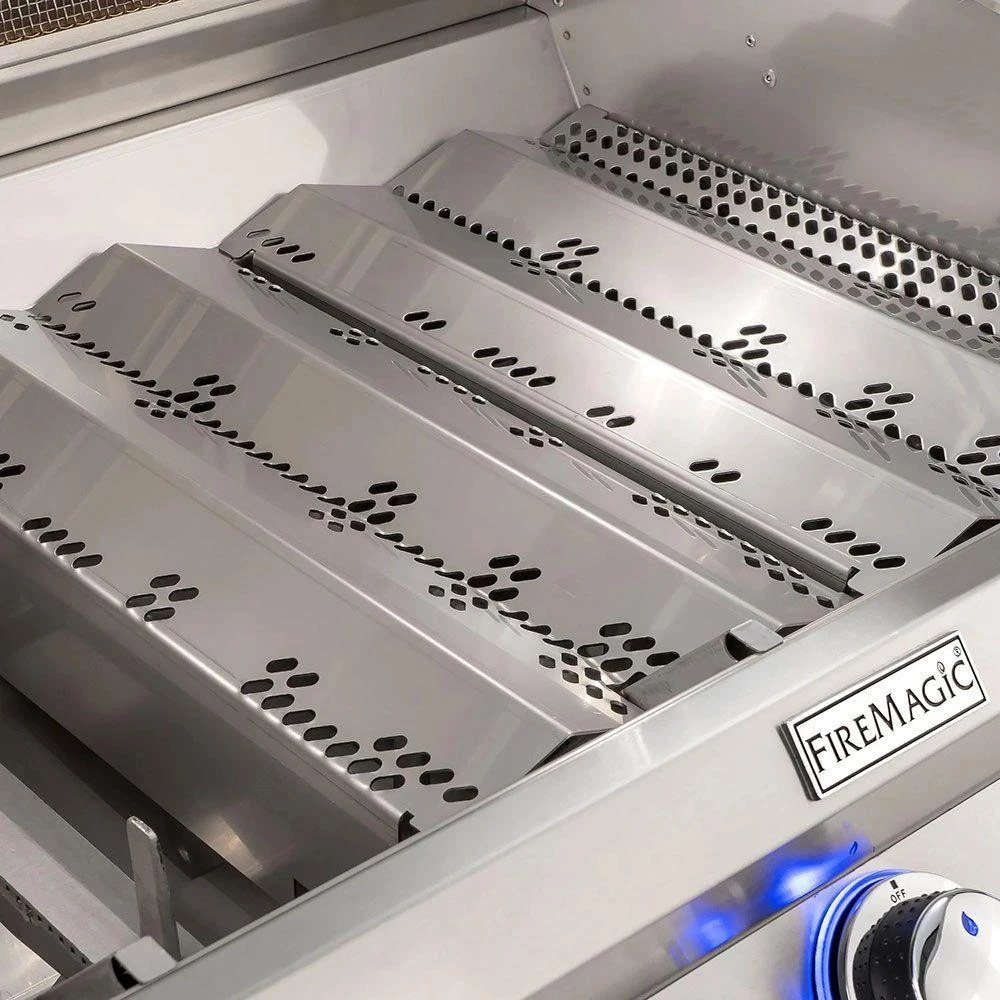

Flavor Grids perform by allowing heat to rise unobstructed from the burner to cooking grids. They disperse heat quickly and evenly flavor the food by vaporizing juices and minimizing flare ups and grease fires. They are also easy to clean and maintain.

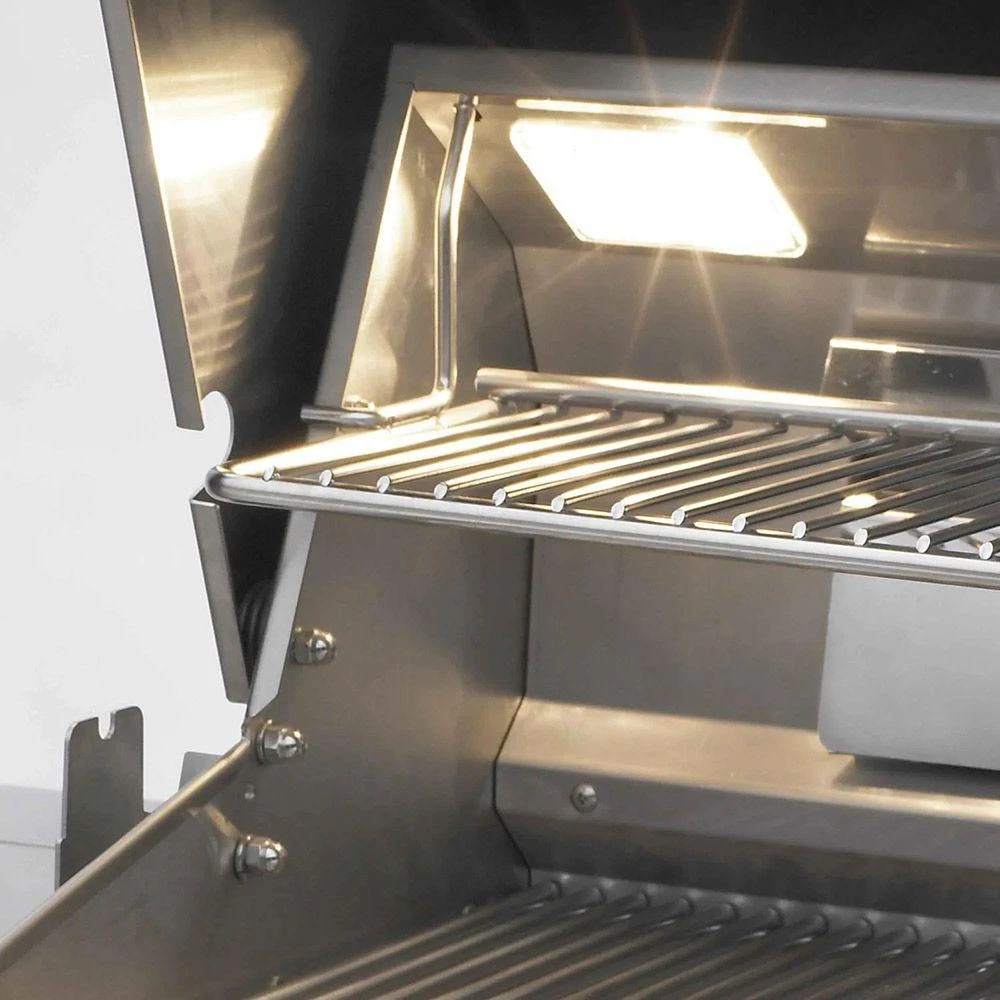

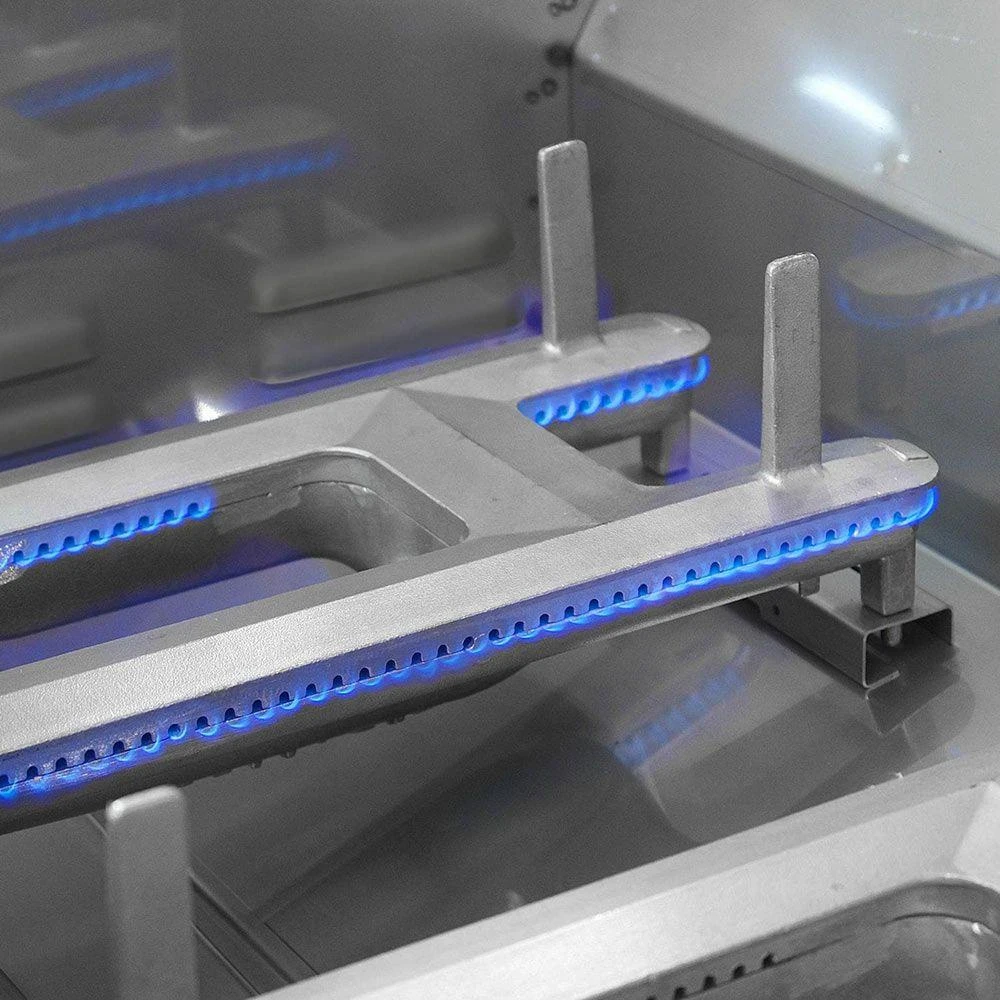

12V interior halogen lights allow for enhanced evening grilling all year long. Made of ¼” thick cast 304 stainless steel, The Aurora’s E-shaped burners perform incredible and are built to last, backed by a lifetime warranty. The grill is designed with a protective lip above the ports to prevent clogging from grease.

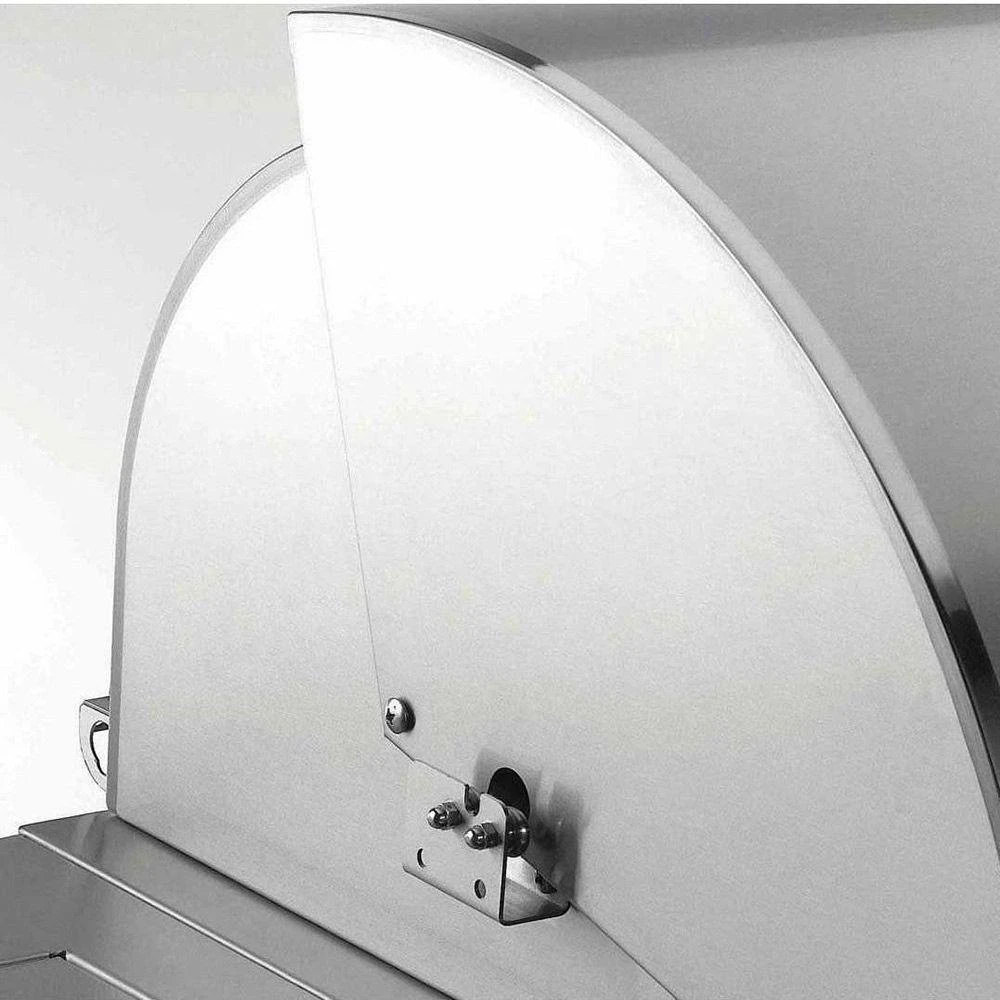

The double walled 304 stainless steel good provides world class heat retention for even heating and consistent cooking. The lid opens to 90 degrees for easy access and efficient exhaust. The teflon coated spring assist makes opening the oven smooth and accessible for all.

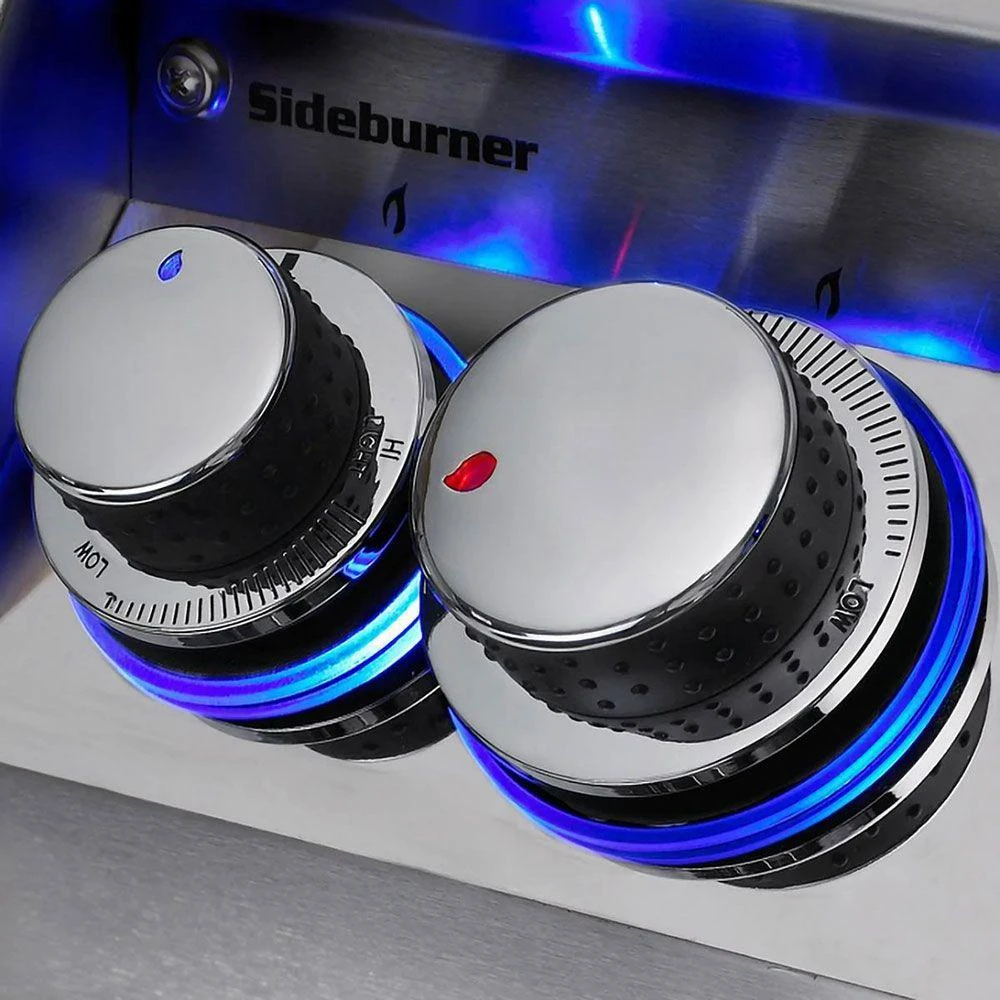

Comfort touch polished knobs are smooth, seamless lines with polished highlights that feature back-lit knobs (at 41°) with comfort touch grips and flame icons for convenience and safety (flame turns red when on).

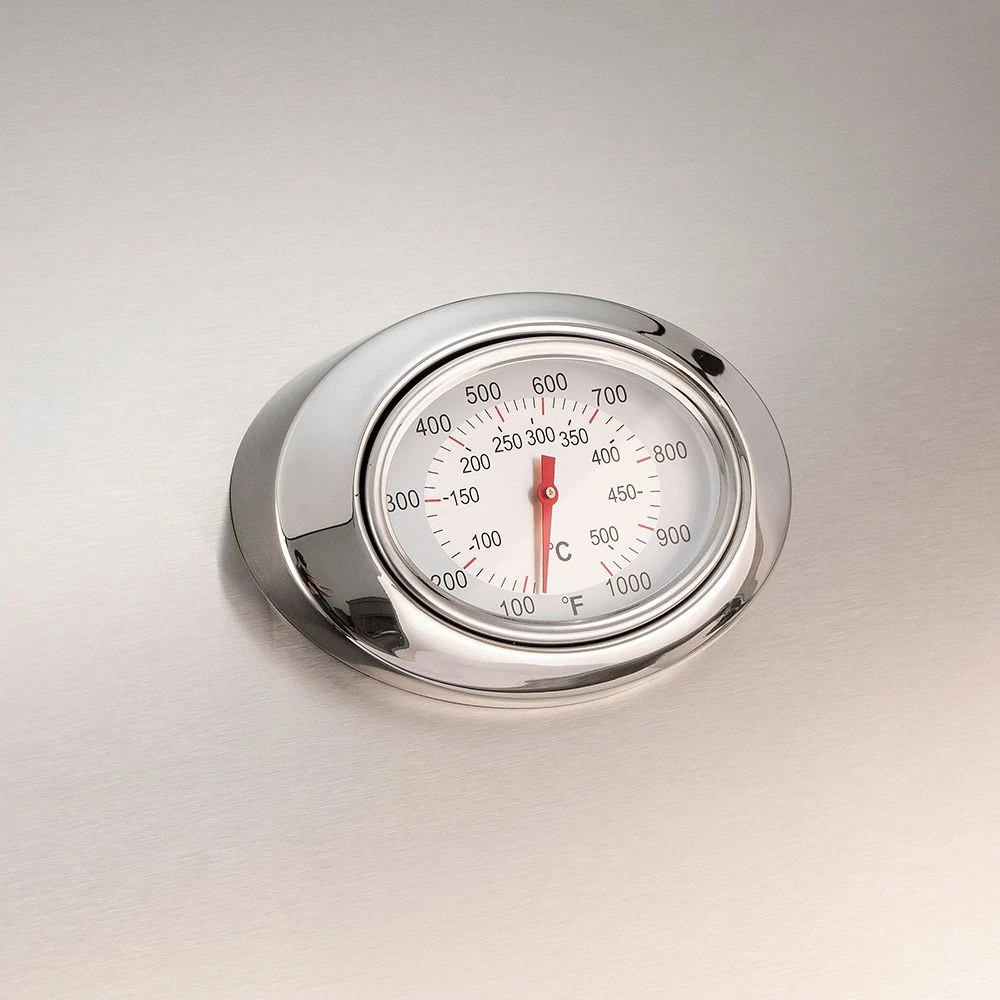

An analog thermometer with polished stainless steel bezel is embedded in the hood. It is large and attractive with a forward angle for easy viewing.

FEATURES

• Diamond Sear Cooking Grids made of heavy duty 304 stainless steel
• Heavy gauge cast stainless steel E burners provide maximum heating capability and incredibly even heat
• 540 sq. in. of main cooking surface area
• 240 sq. in. of secondary cooking surface area
• 780 sq. in. total cooking surface area
• Three (3) E Burners provide 21,000 BTUs output each
• Optional infrared rear burner provides 18,000 BTUs
• 15,000 BTUs side burner
• 78,000 BTUs total – or 96,000 BTUs total with infrared burner upgrade
• Flash tubes serve as backup
• Simple electronic ignition
• Interior halogen lights
• Backlit control knobs
• Choice of 4 colors for back lighting
• Can replace one E shaped burner with an infrared burner at additional extra cost



SPECS

Weight: 315 lbs

Overall Dimensions: 50” H x 62.25″ W x 25.75″ D





Fire Magic A540s Aurora Gas Grill Downloads

Fire Magic Aurora Manual



FIRE MAGIC WARRANTY INFORMATION

Lifetime warranty: cast stainless steel burners, stainless steel rod cooking grids, and stainless steel housing.

15 year warranty: brass valves, inner liners, manifold assemblies, porcelain housings, and backburner assemblies (excluding ignition parts).

5 year warranty: flavor grids and infrared burners.

3 year warranty: side burners and other Fire Magic grill components (excluding ignition and electronic parts).

1 year warranty: ignition systems, electronic components, and grill accessories
